Gasoline

Gasoline is a nonrenewable fuel made from petroleum. Refineries only produce about 20 gallons of gasoline from every 42-gallon barrel of crude oil that is refined. The rest of the barrel gets turned into other petroleum products like diesel fuel, heating oil, jet fuel, and propane.

Gasoline or petrol is a petroleum-derived liquid mixture consisting mostly of aliphatic hydrocarbons and enhanced with aromatic hydrocarbons toluene, benzene or iso-octane (non-aromatic) to increase octane ratings, primarily used as fuel in internal combustion engines. Most Commonwealth countries or former Commonwealth countries, with the exception of Canada, use the term "petrol" (abbreviated from petroleum spirit). The term "gasoline" is commonly used in North America where it is often shortened in colloquial usage to "gas". This should be distinguished in usage from genuinely gaseous fuels used in internal combustion engines such as liquefied petroleum gas (which is stored pressurized as a liquid but is allowed to return naturally to a gaseous state before combustion). The term mogas, short for motor gasoline, distinguishes automobile fuel from aviation gasoline, or avgas.

Gasoline is a complex mixture of over 500 hydrocarbons that may have between 5 to 12 carbons. Smaller amounts of alkane cyclic and aromatic compounds are present. Virtually no alkenes or alkynes are present in gasoline.

Gasoline is most often produced by the fractional distillation of crude oil. The crude oil is separated into fractions according to different boiling points of hydrocarbons of varying chain lengths. This fractional distillation process yields approximately 25% of straight-run gasoline from each barrel of crude oil.


Gasoline History

shell logosinclair logoFlying A logoMobil Pegasus logoStandard oil logo

Before internal-combustion engines were invented in the mid 19th century, gasoline was sold in small bottles as a treatment against lice and their eggs. At that time, the word Petrol was a trade name. This treatment method is no longer common, because of the inherent fire hazard and the risk of dermatitis.

Gasoline was also sold as a cleaning fluid to remove grease stains from clothing.

The name gasoline is similar to that of other petroleum products of the day, most notably petroleum jelly, a highly purified heavy distillate, which was branded Vaseline. The trademark Gasoline, however, was never registered, and thus became generic.

Gasoline was also used in kitchen ranges and for lighting, and is still available in a highly purified form, known as camping fuel or white gas, for use in lanterns and portable stoves

The invention and development of the automobile as primary mode of personal transportation required a parallel development of the fuels that would power the automobiles. Hydrocarbon fuels were an integral component of society in the 19th century as a source of light. Coal gas, camphene, kerosene from the petroleum in the ground all competed to light the lamps of the cities and the country.

Automobile engines demanded unprecedented amounts of petroleum. The early refiners could convert only a small proportion of their crude oil to gasoline - the rest was wasted or spilled to the environment.

During the 1910s, laws prohibited the storage of gasoline on residential properties, so Charles F. Kettering  modified an IC engine to run on kerosene. However the kerosene-fuelled engine would "knock" and crack the cylinder head and pistons. He assigned Thomas Midgley Jr. to confirm that the cause was from the kerosene droplets vaporizing on combustion as they presumed. Midgley demonstrated that the knock was caused by a rapid rise in pressure after ignition, not during preignition as believed. This then lead to the long search for antiknock agents, culminating in tetra ethyl lead . Typical mid-1920s gasoline were 40 - 60 Octane .
Because sulfur in gasoline inhibited the octane-enhancing effect of the alkyl lead, the sulfur content of the thermally-cracked refinery streams for gasoline was restricted. By the 1930s, the petroleum industry had determined that the larger hydrocarbon molecules (kerosene) had major adverse effects on the octane of gasoline, and were developing consistent specifications for desired properties. By the 1940s catalytic cracking was introduced, and gasoline compositions became fairly consistent between brands during the various seasons.

The 1950s saw the start of the increase of the compression ratio, requiring higher octane fuels. Octane ratings, lead levels, and vapor pressure increased, whereas sulfur content and olefins decreased. Some new refining processes ( such as hydrocracking ), specifically designed to provide hydrocarbons components with good lead response and octane, were introduced. Minor improvements were made to gasoline formulations to improve yields and octane until the 1970s - when unleaded fuels were introduced to protect the exhaust catalysts that were also being introduced for environmental reasons. From 1970 until 1990 gasoline was slowly changed as lead was phased out, lead levels plummeted, octanes initially decreased, and then remained 2-5 numbers lower, vapor pressures continued to increase, and sulfur and olefins remained constant, while aromatics increased.



Gas Stations

Gas station

A filling station, fueling station, gas station, service station or petrol station is a facility which sells fuel and lubricants for motor vehicles. But The most common fuels sold are gasoline (petrol) or diesel fuel.

Some stations carry specialty fuels, such as liquified petroleum gas (LPG), compressed natural gas (CNG), hydrogen, biodiesel, ethanol, or kerosene. In recent times, filling stations have also begun to sell butane and have added shops to their primary business; convenience stores are now a familiar sight alongside pumps.

Wawa Gas Station

The term "gas station" is mostly used in the Western Hemisphere, including the United States and Canada, where the fuel is known as "gasoline" or "gas".

The world's first purpose built gas station was constructed in St. Louis, Missouri in 1905 at 412 S. Theresa Avenue. The second gas station was constructed in 1907 by Standard Oil of California (now Chevron) in Seattle, Washington. Reighard's gas station in Altoona, Pennsylvania claims that it dates from 1909 and is the oldest existing gas station in the United States. Early on, they were known to motorists as "filling stations".

How Gasoline Is Made

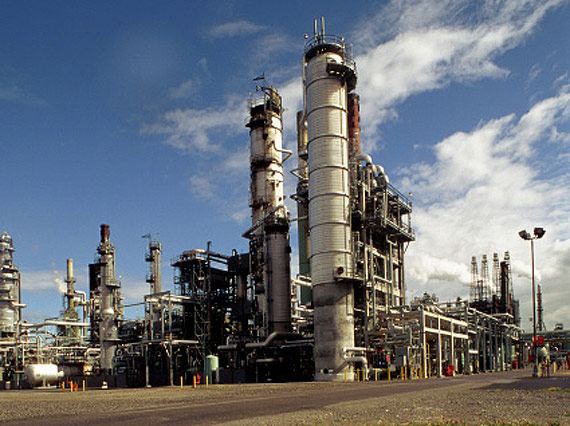

Gasoline is made from crude oil. Refineries take crude oil and break down its hydrocarbons into different products, called “refined products,” including gasoline, diesel fuel, heating oil, jet fuel, liquefied petroleum gases, and residual fuel oil. The characteristics of the gasoline depend on the type of crude oil that is used and the setup of the refinery at which it is produced. Gasoline characteristics are also impacted by other ingredients that may be blended into it, such as ethanol.

The first refinery, opened in 1861, produced kerosene by simple atmospheric distillation. Its by-products included tar and naphtha. It was soon discovered that distilling petroleum under vacuum could produce high-quality lubricating oils. However, for the next 30 years kerosene was the product consumer wanted. Two significant events changed this situation. The invention of the electric light decreased the demand for kerosene and the invention of the internal combustion engine created a demand for diesel fuel and gasoline

Gasoline

The  status of gasoline changed dramatically, when Charles Duryea in 1892 built the first gas-powered automobile in the United States.

Charles Duryea in 1892 built the first gas-powered automobile in the United States.

 Today, refineries turn more than half of every 42-gallon barrel of crude oil into gasoline. This is a remarkable advance from 70 years ago when each barrel of crude yielded only 11 gallons of gasoline.

There are three basic steps common to all refining operations, whether big or small, simple or complex. First, the separation process separates crude oil into various chemical components. Next, the conversion process goes a step further by breaking these chemicals down into molecules called hydrocarbons. Lastly, the treatment process combines and transforms hydrocarbon molecules, and other chemicals called additives, to create a host of new products.

OVERVIEW OF PETROLEUM REFINING PROCESSES

Process name
Action
Method
Purpose
Feedstock(s)
Product(s)
FRACTIONATION PROCESSES
Atmospheric distillation Separation Thermal Separate fractions Desalted crude oil Gas, gas oil, distillate, residual
Vacuum distillation Separation Thermal Separate w/o cracking Atmospheric tower residual Gas oil, lube stock, residual
CONVERSION PROCESSED--DECOMPOSITION
Catalytic cracking Alteration Catalytic Upgrade gasoline Gas oil, coke distillate Gasoline, petrochemical feedstock
Coking Polymerize Thermal Convert vacuum residuals Gas oil, coke distillate Gasoline, petrochemical feedstock
Hydro-cracking Hydrogenate Catalytic Convert to lighter HC's Gas oil, cracked oil, residual Lighter, higher-quality products
*Hydrogen steam reforming Decompose Thermal/ catalytic Produce hydrogen Desulfurized gas, O2, steam Hydrogen, CO, CO2
*Steam cracking Decompose Thermal Crack large molecules Atm tower hvy fuel/ distillate Cracked naphtha, coke, residual
Visbreaking Decompose Thermal reduce viscosity Atmospheric tower residual Distillate, tar
CONVERSION PROCESSES--UNIFICATION
Alkylation Combining Catalytic Unite olefins & isoparaffins Tower isobutane/ cracker olefin Iso-octane (alkylate)
Grease compounding Combining Thermal Combine soaps & oils Lube oil, fatty acid, alky metal Lubricating grease
Polymerizing Polymerize Catalytic Unite 2 or more olefins Cracker olefins High-octane naphtha, petrochemical stocks
CONVERSION PROCESSES--ALTERATION OR REARRANGEMENT
Catalytic reforming Alteration/
dehydration
Catalytic Upgrade low-octane naphtha Coker/ hydro-cracker naphtha High oct. Reformate/ aromatic
Isomerization Rearrange Catalytic Convert straight chain to branch Butane, pentane, hexane Isobutane/ pentane/ hexane
TREATMENT PROCESSES
*Amine treating Treatment Absorption Remove acidic contaminants Sour gas, HCs w/CO2 & H2S Acid free gases & liquid HCs
Desalting Dehydration Absorption Remove contaminants Crude oil Desalted crude oil
Drying & sweetening Treatment Abspt/ therm Remove H2O & sulfur cmpds Liq Hcs, LPG, alky feedstk Sweet & dry hydrocarbons
*Furfural extraction Solvent extr. Absorption Upgrade mid distillate & lubes Cycle oils & lube feed-stocks High quality diesel & lube oil
Hydrodesulfurization Treatment Catalytic Remove sulfur, contaminants High-sulfur residual/ gas oil Desulfurized olefins
Hydrotreating Hydrogenation Catalytic Remove impurities, saturate HC's Residuals, cracked HC's Cracker feed, distillate, lube
*Phenol extraction Solvent extr. Abspt/ therm Improve visc. index, color Lube oil base stocks High quality lube oils
Solvent deasphalting Treatment Absorption Remove asphalt Vac. tower residual, propane Heavy lube oil, asphalt
Solvent dewaxing Treatment Cool/ filter Remove wax from lube stocks Vac. tower lube oils Dewaxed lube basestock
Solvent extraction Solvent extr. Abspt/ precip. Separate unsat. oils Gas oil, reformate, distillate High-octane gasoline
Sweetening Treatment Catalytic Remv H2S, convert mercaptan Untreated distillate/gasoline High-quality distillate/gasoline



Separation

Separation starts by pumping crude oil into pipes running through hot furnaces and heating the oil to vaporize it. The resulting vapors and liquids are discharged into distillation towers, the tall, narrow columns that give refineries their distinctive skylines.

Inside the towers, the liquids and vapors separate into components or fractions according to their density and boiling point. The lightest fractions, including gasoline and liquid petroleum gas (LPG), vaporize and rise to the top of the tower, where they condense back to liquids. Medium-weight liquids, including kerosene and diesel oil, stay in the middle. Heavier liquids, called gas oils, separate lower down. The heaviest fractions with the highest boiling points settle at the bottom.

The various fractions are then piped to different stations or plants within the refinery. Some fractions require relatively little additional processing to become road asphalt or jet fuel. However, fractions destined to become high-value products, such as gasoline, typically require much more additional processing.

Conversion

Conversion is where fractions from the distillation towers are transformed into streams (intermediate components) that eventually become finished products.

The most widely used conversion method is called cracking, which uses heat and pressure to literally "crack" heavy hydrocarbon molecules into lighter ones. A cracking unit consists of one or more tall, thick-walled, bullet-shaped containers, called reactors, and a network of furnaces, heat exchangers, and other vessels.

Fluid catalytic cracking, or "cat cracking," is the basic gasoline-making process. Using intense heat (about 1,000 degrees Fahrenheit), low pressure and a powdered catalyst (a substance that accelerates chemical reactions), the cat cracker can convert most relatively heavy fractions into smaller gasoline molecules.

Hydrocracking applies the same principles but uses a different catalyst, slightly lower temperatures, much greater pressure and hydrogen to obtain chemical reactions. Although not all refineries employ hydrocracking, Chevron is an industry leader in using this technology to cost-effectively convert medium- to heavyweight gas oils into high-value streams. The company's patented hydrocracking process, which takes place in the Isocracker unit, produces mostly gasoline and jet fuel.

Some refineries also have cokers, which use heat and moderate pressure to turn residuum into lighter products and a hard, coallike substance that is used as an industrial fuel. Cokers are among the more peculiar-looking refinery structures. They resemble a series of giant drums with metal derricks on top.

Cracking and coking are not the only forms of conversion. Other refinery processes, instead of splitting molecules, rearrange them to add value. Alkylation, for example, makes gasoline components by combining some of the gaseous byproducts of cracking. The process, which essentially is cracking in reverse, takes place in a series of large, horizontal vessels and tall, skinny towers that loom above other refinery structures.

Reforming uses heat, moderate pressure, and catalysts to turn naphtha, a light, relatively low-value fraction of the oil, into high-octane gasoline.

Treatment

Treatment is the final step before tanker trucks and railroad cars head out of the refinery to deliver gasoline to our local gas station.A major part of modern refining involves blending, purifying, fine-tuning and otherwise improving products to meet these requirements.

To make gasoline, refinery technicians carefully combine a variety of streams from the processing units. Among the variables that determine the blend are octane level, vapor pressure ratings, and other special considerations, such as whether the gasoline will be used at high altitudes. Technicians also add patented performance additives, and dyes to distinguish the various grades of fuel.

History of Refining

Year

Process

Purpose

By-Products, etc.

1862

Atmospheric distillation

Produce kerosene

Naphtha, tar, etc..

1870

Vacuum distillation

Lubricants originally, then cracking feedstocks (1930's)

Asphalt, residual, Coker feedstocks

1913

Thermal cracking

Increase gasoline yield

Residual, bunker fuel

1916

Sweetening

Reduce sulfur & odor

Sulfur

1930

Thermal reforming

Improve octane number

Residual

1932

Hydrogenation

Remove sulfur

Sulfur

1932

Coking

Produce gasoline basestock

Coke

1933

Solvent extraction

Improve lubricant viscosity index

Aromatics

1935

Solvent dewaxing

Improve pour point

Waxes

1935

Cat. polymerization

Improve gasoline yield and octane number

Petrochemical, feedstocks

1937

Catalytic cracking

Higher octane gasoline

Petrochemical, feedstocks

1939

Visbreaking

Reduce viscosity

Increased distillate, tar

1940

Alkylation

Increase gasoline octane & yield

High-octane aviation gasoline

1940

Isomerization

Produce alkylation feedstock

Naphtha

1942

Fluid catalytic cracking

Increase gasoline yield & octane

Petrochemical feedstocks

1950

Deasphalting

Increase cracking feedstock

Asphalt

1952

Catalytic reforming

Convert low-quality naphtha

Aromatics

1954

Hydrodesulfurization

Remove sulfur

Sulfur

1956

Inhibitor sweetening

Remove mercaptan

Disulfides

1957

Catalytic isomerization

Convert to molecules with high octane number

Alkylation feedstocks

1960

Hydrocracking

Improve quality and reduce sulfur

Alkylation feedstocks

1974

Catalytic dewaxing

Improve pour point

Wax

1975

Residual hydrocracking

Increase gasoline yield from residual

Heavy residuals

What is the octane number?

Fuel octane requirements for gasoline engines vary with the compression ratio of the engine. Engine compression ratio is the relative volume of a cylinder from the bottom most position of the piston's stroke to the top most position of the piston's stroke. The higher an engine's compression ratio, the greater the amount of heat generated in the cylinder during the compression stroke.

If fuel octane is too low for a given compression ratio, the fuel prematurely and spontaneously ignites too early and the fuel charge EXPLODES rather than BURNS resulting in incomplete combustion. The net effect is a loss in power, possible engine damage, and an audible "knock" or "ping", referred to as detonation.


The octane number of gasoline is a measure of its resistance to knock. The octane number is determined by comparing the characteristics of a gasoline to isooctane (2,2,4-trimethylpentane) and heptane. Isooctane is assigned an octane number of 100. It is a highly branched compound that burns smoothly, with little knock. On the other hand, heptane, a straight chain, unbranched molecule is given an octane rating of zero because of its bad knocking properties.

Straight-run gasoline (directly from the refinery distillation column) has an octane number of about 70. In other words, straight-run gasoline has the same knocking properties as a mixture of 70% isooctane and 30% heptane. Many of these compounds are straight chain alkanes. Cracking, isomerization, and other refining processes can be used to increase the octane rating of gasoline to about 90. Anti-knock agents may be added to further increase the octane rating.
